Cane Creek Lodge - Quick Reference Guide

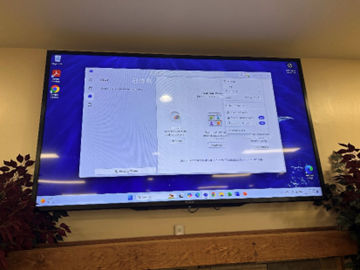

The Front of the room has as Sharp 90” Commercial LCD TV

To connect to the presentation screen from the podium at the front left of room:

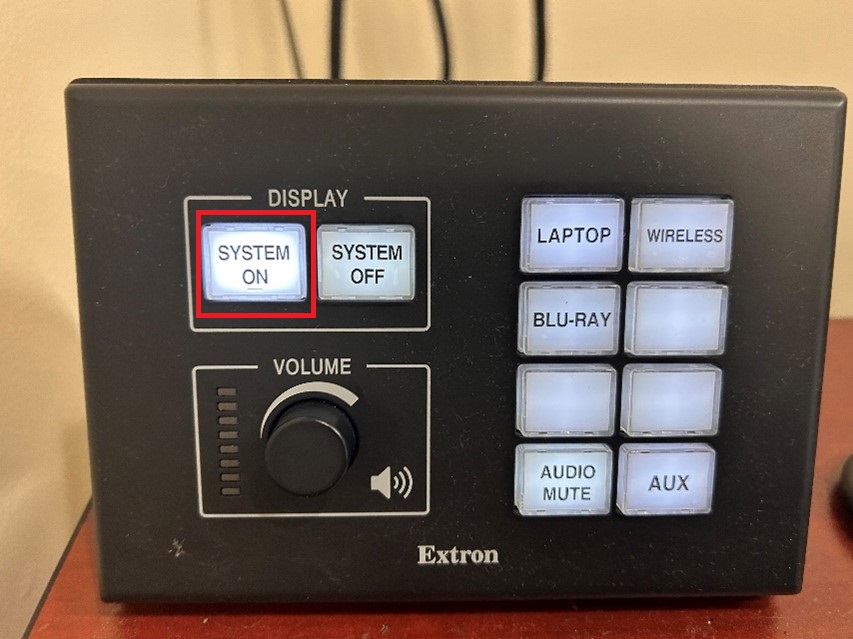

Power on the system by pressing the System on button.

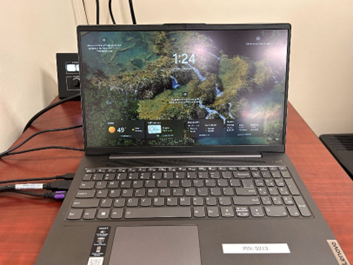

The lodge has an assigned laptop that can be used.

It may ask for a pin code for use.  The pin is 5213

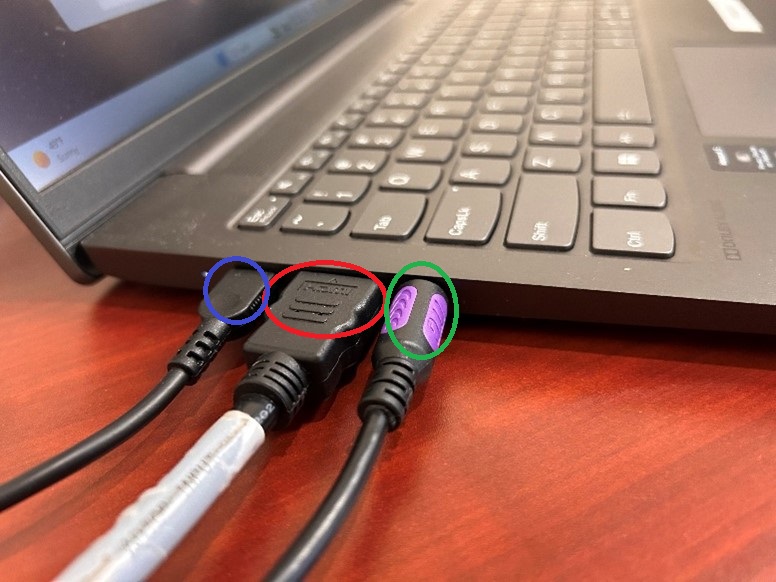

If you would like to use a different laptop, take out the wired connections on the left side.  The HDMI and 3.5mm  The other cable is for power to the laptop.

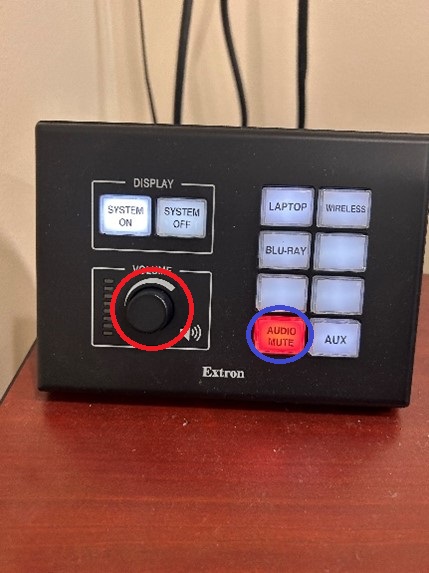

The audio control is used by the knob below the “System On & System Off” buttons. If you would like to make sure there are no notification sounds to interrupt your presentation you will need to press the – Audio Mute button as seen below.

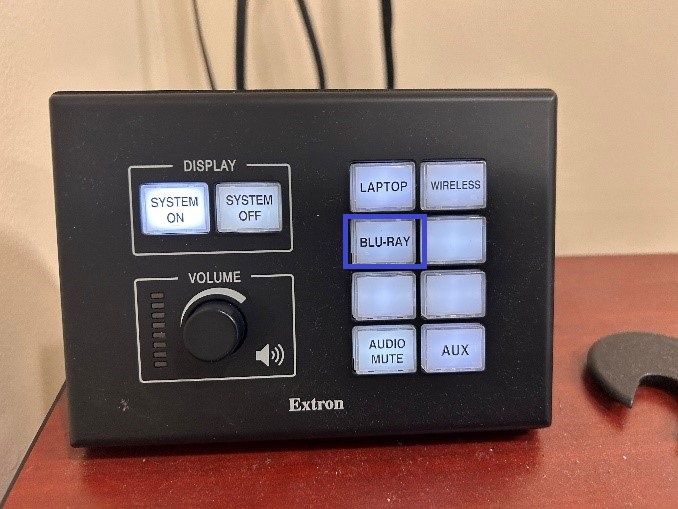

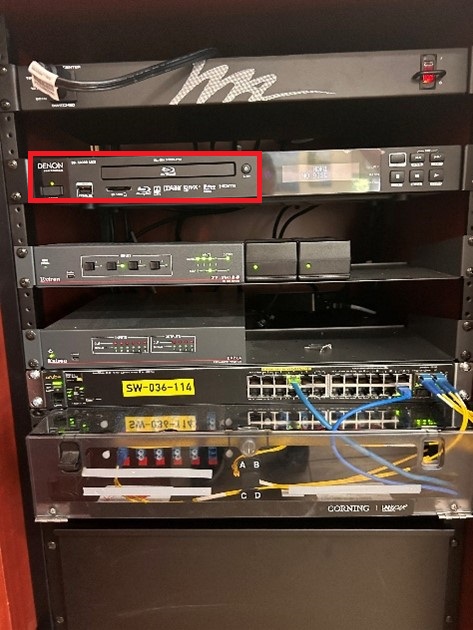

There is a Blu-Ray player in the podium that can be used.  You would need to open the podium door, turn on the Blu-Ray player, put in the disk and then press the Blu-Ray button

To present wirelessly, you can press the Wireless Button

On your windows device press “Win+K”

This will bring up a pop up menu to cast.  Select the device.

If prompted enter the security code that will be displayed on the in room screens.

Select to either mirror or extend your display.

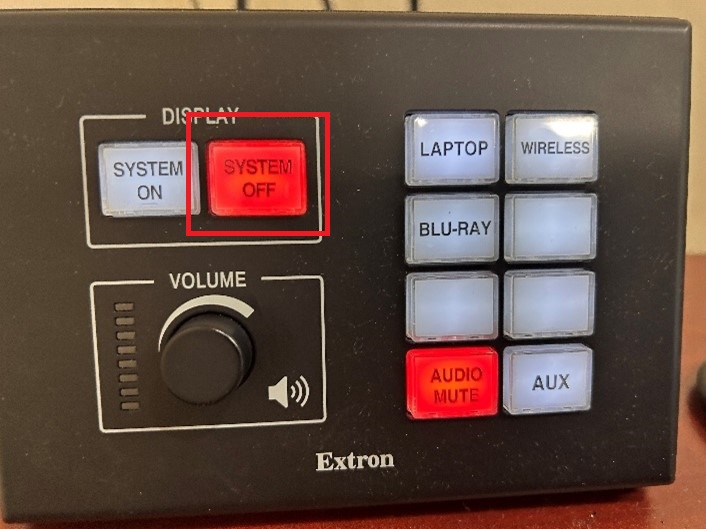

To power off the system you will click on the System Off button and close the laptop.  If you were using a different laptop, reconnect the cable to the room assigned laptop on the podium.

**The Parks and Rec department can also have someone available to assist if it’s needed.  You can contact Jared Steel (Park Superintendent) jared.steele@unioncountync.gov
